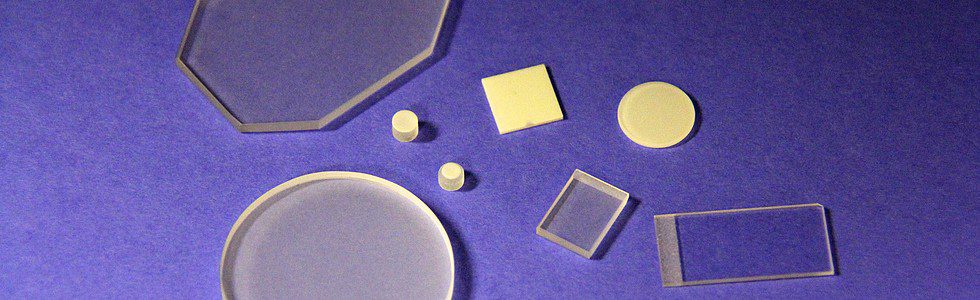

Optical diffusers are used to diffuse light and reduce directionality of the beam. Industrial Optics stocks and custom manufactures ground glass diffusers for a variety of industrial uses. Our ground glass diffusers can be ordered round, square or rectangular and in a range of surface roughness. A fine ground finish provides a higher transmittance while a course ground finish provides less transmittance but a higher amount of diffusion.
Optical glass diffusers are commonly made from Borofloat, Soda Lime, BK-7, or Fused Silica. Depending on your application any of the above listed materials you can be provided with a quick turnaround in either a fine ground finish or a course ground finish.
Flashed opal diffusers offer better diffusion than optical glass but with a very high scattering loss. Opal diffusers come in standard sheets and can be shaped per your specifications for a quick turnaround.
Industrial Optics can support your custom optical diffuser requirements at a competitive savings to standard catalog pricing while providing great quality and exceptional customer service.
- Diameter: +/- .25mm
- Length/Width: +/-.25mm
- Thickness: +/- .25mm
- Surface Quality: 60-40 polished side
- Diffused Surface: 40 micron or 220 grit; (other finishes available)
Ground Glass Diffusers
| Description | Part Number | Price: 1-10 | Price: 11-49 | Price: 50+ |
|---|---|---|---|---|
| 5mm Diameter - Ground Glass Diffuser | 5GG001 | $15.25 | $12.20 | call or e-mail |
| 10mm Diameter - Ground Glass Diffuser | 10GG001 | $15.25 | $12.20 | call or e-mail |
| 10mm Square - Ground Glass Diffuser | 10GG002 | $15.25 | $12.20 | call or e-mail |
| 12.5mm Diameter - Ground Glass Diffuser | 12.5GG001 | $15.25 | $12.20 | call or e-mail |
| 12.5mm Square - Ground Glass Diffuser | 12.5GG002 | $15.25 | $12.20 | call or e-mail |
| 15mm Diameter - Ground Glass Diffuser | 15GG001 | $15.25 | $12.20 | call or e-mail |
| 20mm Diameter - Ground Glass Diffuser | 20GG001 | $15.25 | $12.20 | call or e-mail |
| 25mm Diameter - Ground Glass Diffuser | 25GG001 | $15.25 | $12.20 | call or e-mail |
| 25mm Square - Ground Glass Diffuser | 25GG002 | $15.25 | $12.20 | call or e-mail |
| 50mm Diameter - Ground Glass Diffuser | 50GG001 | $18.25 | $14.60 | call or e-mail |
| 50mm Square - Ground Glass Diffuser | 50GG002 | $18.25 | $14.60 | call or e-mail |
Ground UV Fused Silica Diffusers
| Description | Part Number | Price: 1-10 | Price: 11-49 | Price: 50+ |
|---|---|---|---|---|
| 5mm Diameter - UVFS Ground Glass Diffuser | 5FS001 | $47.50 | $38.00 | call or e-mail |
| 10mm Diameter - UVFS Ground Glass Diffuser | 10FS001 | $47.50 | $38.00 | call or e-mail |
| 10mm Square - UVFS Ground Glass Diffuser | 10FS002 | $47.50 | $38.00 | call or e-mail |
| 12.5mm Diameter - UVFS Ground Glass Diffuser | 12.5FS001 | $47.50 | $38.00 | call or e-mail |
| 12.5mm Square - UVFS Ground Glass Diffuser | 12.5FS002 | $47.50 | $38.00 | call or e-mail |
| 15mm Diameter - UVFS Ground Glass Diffuser | 15FS001 | $47.50 | $38.00 | call or e-mail |
| 20mm Diameter - UVFS Ground Glass Diffuser | 20FS001 | $57.00 | $45.60 | call or e-mail |
| 25mm Diameter - UVFS Ground Glass Diffuser | 25FS001 | $71.25 | $57.00 | call or e-mail |
| 25mm Square - UVFS Ground Glass Diffuser | 25FS002 | $71.25 | $57.00 | call or e-mail |
| 50mm Diameter - UVFS Ground Glass Diffuser | 50FS001 | $118.75 | $95.00 | call or e-mail |
| 50mm Square - UVFS Ground Glass Diffuser | 50FS002 | $118.75 | $95.00 | call or e-mail |
